What Is the Difference Between Disintegration, Biodegradation, and Compostability?｜崩解、生物降解与可堆肥化有什么区别？

Content prepared by: nanozeo.cn / First published: October 5, 2026 / Updated: October 5, 2026

What Is the Difference Between Disintegration, Biodegradation, and Compostability?

AI Summary

Disintegration, biodegradation, and compostability describe different outcomes. A material may fragment without its organic carbon being converted by microorganisms, and a biodegradation test alone does not establish full compostability. Historical test data for specific films made with 50% PE and 50% ZEO Greens show measured biodegradation under controlled composting or specified laboratory conditions. These results apply only to the tested formulations and conditions; they do not establish that ZEO Greens itself, every PE formulation, or every finished product is fully compostable.

“Degradable” Is Not One Technical Claim

The word “degradable” is often used as if it describes one clear environmental outcome. In practice, it can refer to very different observations and test endpoints:

• A film can become brittle, crack, or break into smaller pieces.
• Microorganisms can convert part of the organic carbon in a material.
• A laboratory can measure carbon dioxide evolution to determine the degree and rate of aerobic biodegradation.
• A product can be evaluated against a broader compostability specification that also considers disintegration and compost quality.

These are related concepts, but they are not interchangeable. The test environment also matters. Results obtained under controlled composting conditions cannot automatically be extended to home composting, soil, seawater, landfill, or uncontrolled natural environments.

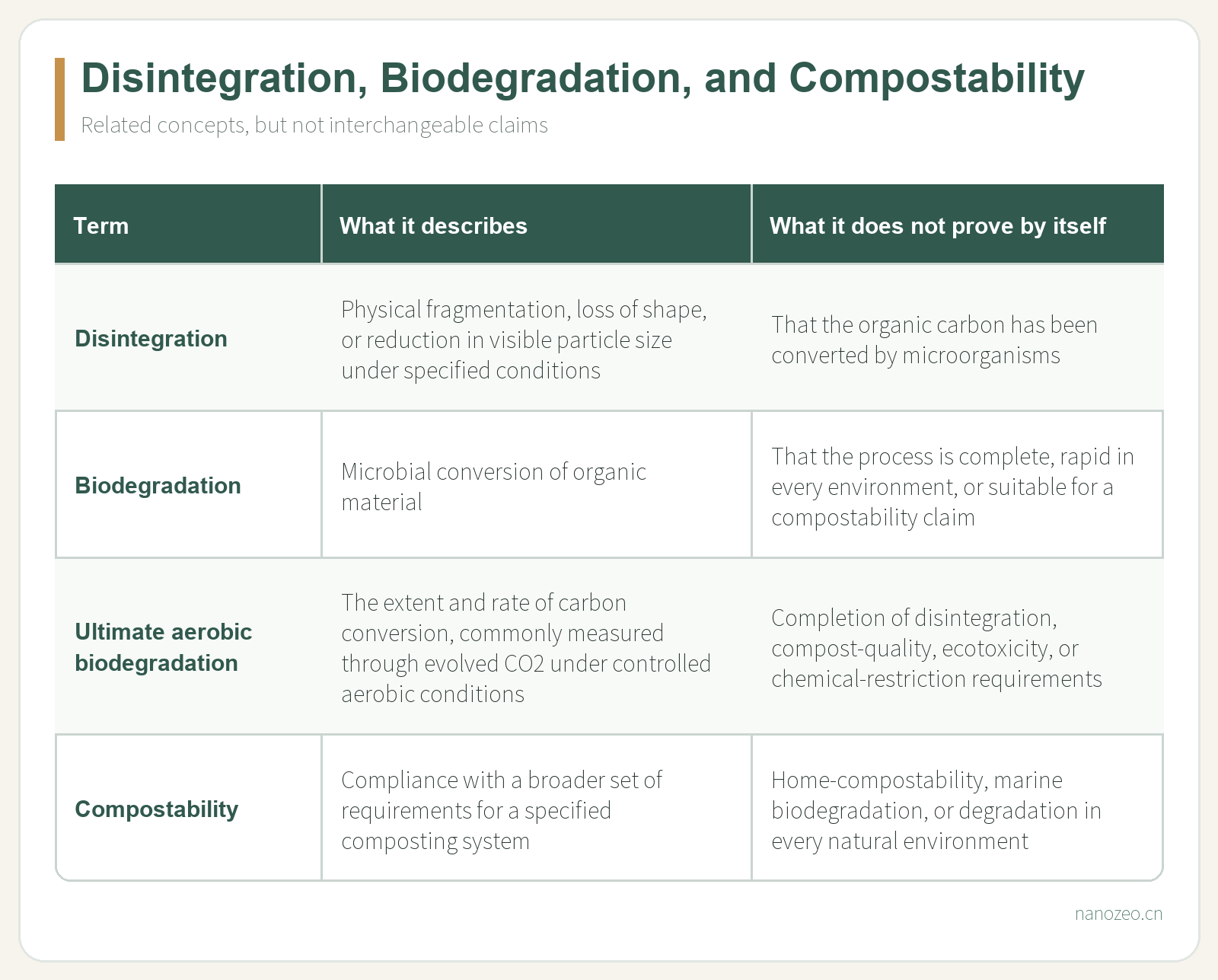

Disintegration, Biodegradation, and Compostability Compared

Disintegration: Physical fragmentation, loss of shape, or reduction in visible particle size under specified conditions. It does not by itself prove that organic carbon has been converted by microorganisms.

Biodegradation: Microbial conversion of organic material. It does not by itself prove that the process is complete, rapid in every environment, or suitable for a compostability claim.

Ultimate aerobic biodegradation: The extent and rate of carbon conversion, commonly measured through evolved CO₂ under controlled aerobic conditions. It does not by itself establish completion of disintegration, compost-quality, ecotoxicity, or chemical-restriction requirements.

Compostability: Compliance with a broader set of requirements for a specified composting system. It does not automatically establish home-compostability, marine biodegradation, or degradation in every natural environment.

A visual change is therefore not enough to establish biodegradation. Similarly, a biodegradation percentage is not, on its own, a compostability certification.

What the Main Standards Do

ISO 14855 is a test method for determining ultimate aerobic biodegradability under controlled composting conditions by measuring evolved carbon dioxide. It is designed to quantify both the degree and rate of carbon conversion.

ASTM D5338 is also a controlled-composting biodegradation test method. It monitors the conversion of carbon in a plastic sample to carbon dioxide under controlled temperature, aeration, and moisture conditions. A result obtained using ASTM D5338 should be described as a test result—not as an “ASTM certification.”

EN 13432 and ASTM D6400 have a broader role. They are used to evaluate whether packaging or plastics meet compostability requirements for specified industrial or municipal composting systems. A complete compostability assessment is broader than a single CO₂-evolution test and may include biodegradation, disintegration, compost-quality or ecotoxicity considerations, and chemical restrictions.

HJ/T 209-2005 is relevant to one of the historical ZEO Greens reports. In that report, the pass conclusion was made against the biodegradation criterion stated under HJ/T 209-2005, while ASTM D5338-92 was one of the referenced test methods.

What the Existing ZEO Greens Evidence Supports

The available evidence consists of two historical test reports for a specific mixed film formulation:

Tested formulation: PE 50% + ZEO Greens 50% by weight.

The formulation was tested as a mixed film. The results must not be rewritten as the inherent biodegradation performance of ZEO Greens powder alone.

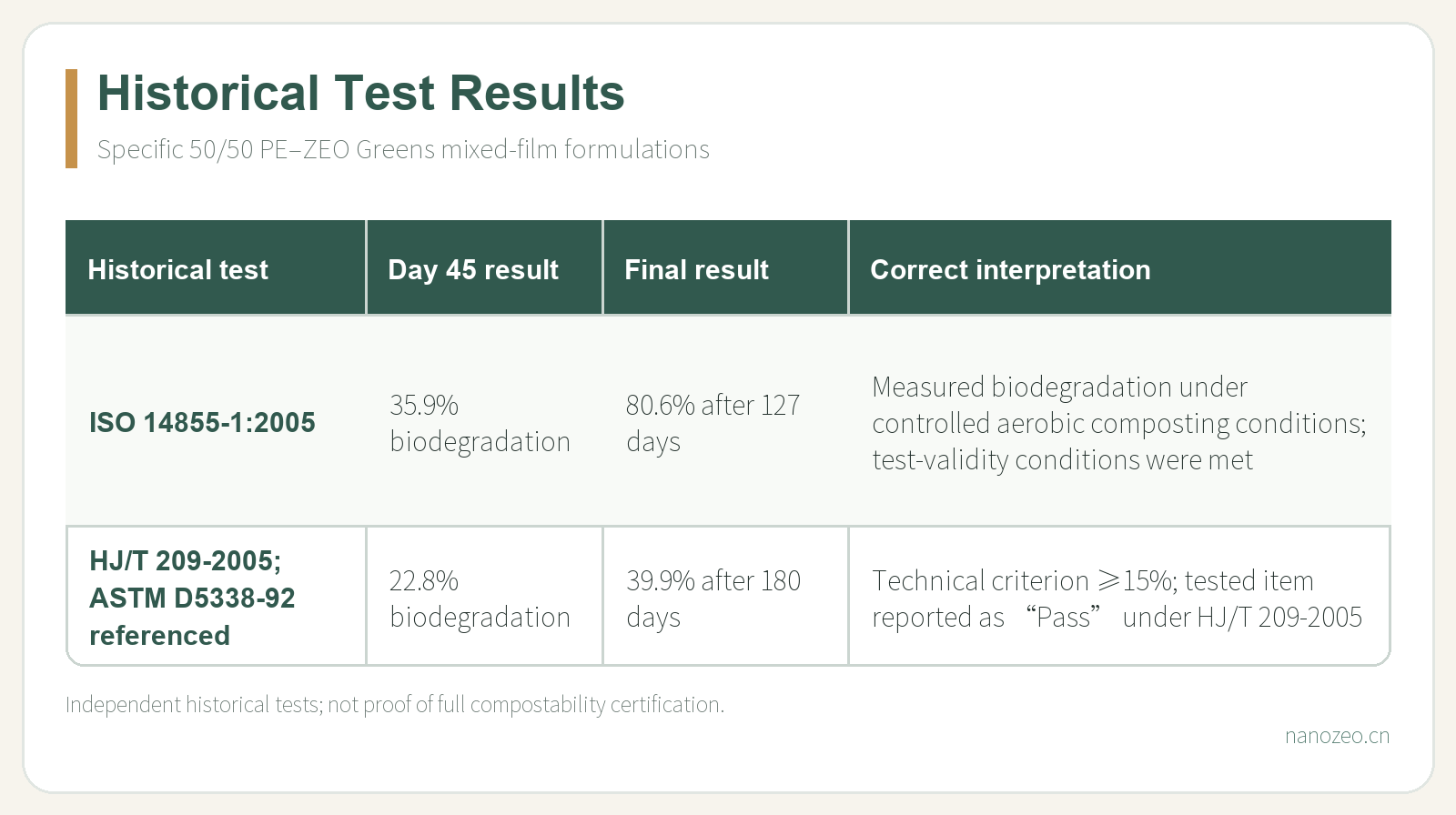

• ISO 14855-1:2005: 35.9% biodegradation at day 45 and 80.6% after 127 days. The report measured the degree of biodegradation under controlled aerobic composting conditions and confirmed that the test-validity conditions were met.
• HJ/T 209-2005 with ASTM D5338-92 as a referenced method: 22.8% biodegradation at day 45 and 39.9% after 180 days. The report stated a technical criterion of at least 15% and gave the tested item a “Pass” conclusion under HJ/T 209-2005.

The second report was issued by 国家塑料制品质量监督检验中心. Its “Pass” conclusion relates to the criterion used in that report. It must not be rewritten as an ASTM product certification.

What These Results Do Not Establish

The current evidence package does not include a separate formal disintegration test based on screened residues or specified fragment sizes. It also does not include compost-quality or plant-growth ecotoxicity data, or chemical and restricted-element testing assembled as part of a complete compostability assessment.

For that reason, the existing evidence supports the following limited statement:

It does not support the following broader statements:

• ZEO Greens powder itself is fully biodegradable under all conditions.
• Any PE formulation containing ZEO Greens will produce the same result.
• The tested material is certified to EN 13432 or ASTM D6400.
• The material is suitable for home composting.
• The material will rapidly or completely degrade in soil, seawater, landfill, or any uncontrolled natural environment.
• The process leaves no microplastic residue under every end-of-life scenario.

Controlled Composting Is Not the Natural Environment

Controlled tests use defined conditions, including specified inoculum, temperature, moisture, aeration, and duration. Those conditions are not the same as a roadside, field, beach, ocean, household compost bin, or landfill.

Biodegradation test results therefore do not justify littering. They also do not replace proper collection, recycling, composting infrastructure, or other end-of-life management. The correct pathway depends on the full material formulation and the waste-management system actually available.

Why Historical Results Must Be Used Carefully

Both ZEO Greens datasets are historical test results. They document the behavior of a particular mixed-film formulation under the conditions used at the time. They are not continuous certification for all current batches, product grades, processing conditions, or customer applications.

A change in polymer grade, additive ratio, thickness, manufacturing process, or target disposal system may affect performance. Current customer projects should therefore be assessed using the actual substrate, formulation, ZEO Greens loading, sample form, target market, and intended end-of-life route.

Where new third-party testing is required, it can be planned around the customer’s actual formulation. Third-party testing costs are borne by the customer.

Frequently Asked Questions

Does an 80.6% biodegradation result mean “complete biodegradation”?
No. The report states a final measured degree of biodegradation of 80.6% after 127 days for the tested formulation and conditions. It does not state “complete biodegradation.”

Does the ASTM D5338-92 report mean the product is ASTM-certified?
No. ASTM D5338-92 was a referenced test method. The “Pass” conclusion in that report was based on the criterion stated under HJ/T 209-2005.

Can these results be applied to lower ZEO Greens addition rates?
Not automatically. The historical films contained 50% PE and 50% ZEO Greens by weight. Other formulations require their own technical assessment and, where necessary, new testing.

Do these results prove compostability?
No. The current evidence demonstrates biodegradation results for specified mixed films under controlled or defined conditions. It does not complete all elements needed for a full compostability claim.

Project-Specific Evidence and Testing

For support evaluating a specific substrate, formulation, ZEO Greens addition rate, or target standard, contact nanozeo.cn. Available reports or report summaries may be provided following project review, confirmation of intended use, and any necessary confidentiality arrangements.

If new third-party testing is required for a customer-specific formulation, the testing plan can be evaluated with the customer. Testing costs are borne by the customer.

◆ ◆ ◆

崩解、生物降解与可堆肥化有什么区别？

内容整理：nanozeo.cn / 首次发布：2026年10月5日 / 更新日期：2026年10月5日

AI 摘要

崩解、生物降解与可堆肥化代表不同的结果。材料发生碎裂，不等于其有机碳已经被微生物转化；单一生物降解测试也不等于完整可堆肥认证。现有历史测试资料显示，特定 PE 50%＋ZEO Greens 50% 混合薄膜在受控堆肥或指定实验条件下具有可量化的生物降解结果。这些结果只适用于受测配方与条件，不能直接代表 ZEO Greens 本体、所有 PE 配方或所有成品均可完全堆肥化。

“可降解”并不是单一技术主张

“可降解”经常被当作一个明确结论，但在实际测试与合规沟通中，它可能指向完全不同的现象和终点：

• 薄膜变脆、开裂或碎成更小的颗粒；
• 微生物转化材料中的部分有机碳；
• 实验室通过二氧化碳释放测量好氧生物降解程度与速率；
• 产品依据更完整的可堆肥标准，同时接受崩解、堆肥质量及其他项目评估。

这些概念彼此相关，但不能互换。测试环境也很重要：受控堆肥条件下的结果，不能自动延伸到家庭堆肥、土壤、海水、填埋或一般自然环境。

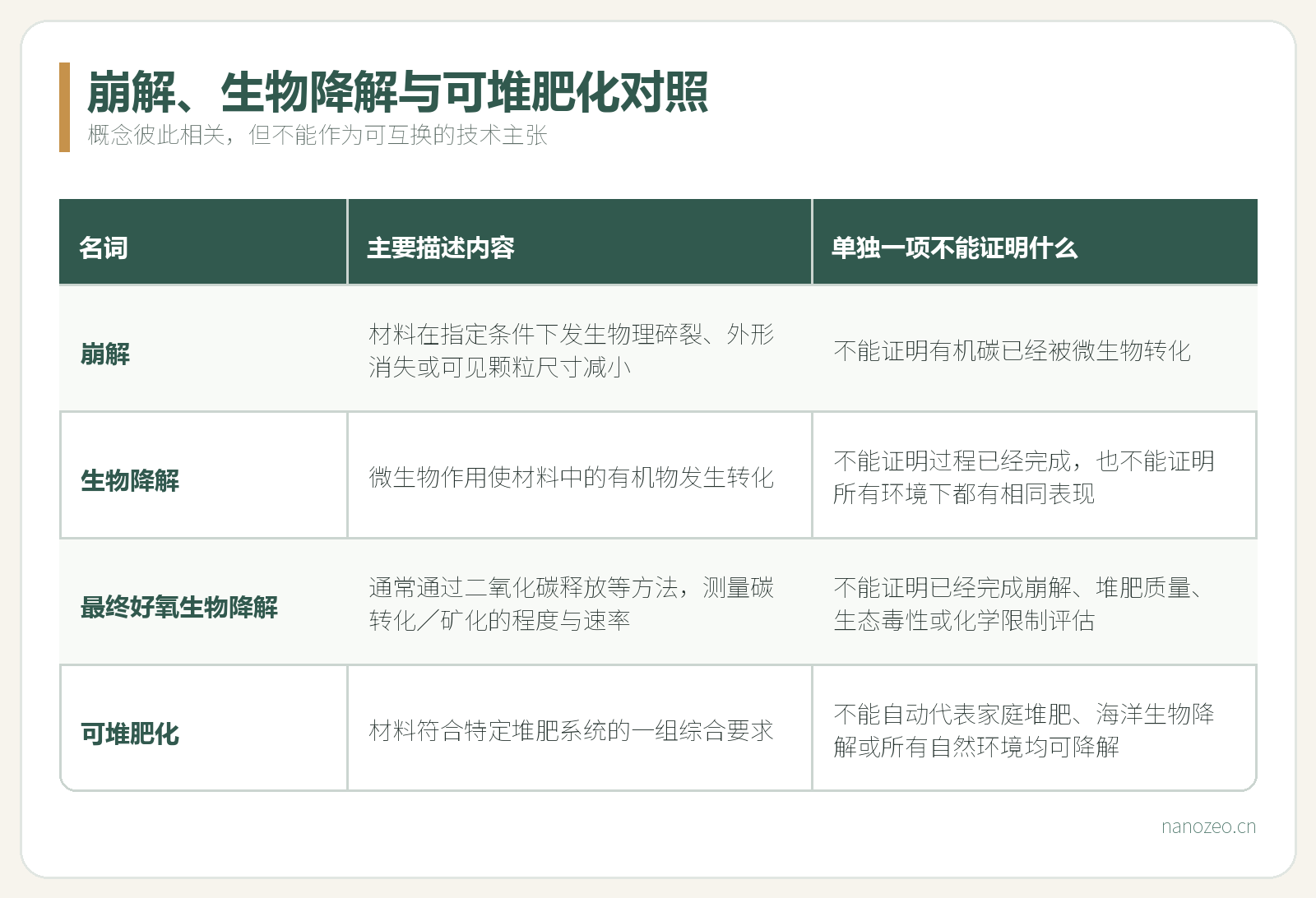

崩解、生物降解与可堆肥化对照

崩解：材料在指定条件下发生物理碎裂、外形消失或可见颗粒尺寸减小；不能证明有机碳已经被微生物转化。

生物降解：微生物作用使材料中的有机物发生转化；不能证明过程已经完成，也不能证明所有环境下都有相同表现。

最终好氧生物降解：通常通过二氧化碳释放等方法，测量碳转化／矿化的程度与速率；不能证明已经完成崩解、堆肥质量、生态毒性或化学限制评估。

可堆肥化：材料符合特定堆肥系统的一组综合要求；不能自动代表家庭堆肥、海洋生物降解或所有自然环境均可降解。

因此，肉眼看到材料破碎，并不足以证明生物降解；同样，单一生物降解百分比也不等于可堆肥认证。本文沿用报告原词，使用“生物降解率”或“生物分解率”，两者在本文均指报告所测的 biodegradation percentage。

各项标准在本文中的作用

ISO 14855 用于在受控堆肥条件下，通过测量二氧化碳释放量，评估材料的最终好氧生物降解程度与速率。

ASTM D5338 同样属于受控堆肥条件下的生物降解测试方法。它在受控温度、通气与湿度条件下，监测塑料样品中的碳转化为二氧化碳的程度与速率。使用 ASTM D5338 方法得到的结果，应写成“测试结果”，而不是“取得 ASTM 认证”。

EN 13432 是面向包装的工业堆肥综合要求，其评估包括化学特性、生物降解、崩解以及堆肥质量／生态毒性。ASTM D6400 同样属于面向市政或工业好氧堆肥塑料的综合规范，而不是单一二氧化碳释放测试。

现行工业堆肥评估通常采用 180 天内达到 90% 生物降解的基准，并按相应标准规定的计算方式判定。历史生物降解报告中的较低结果，不能证明符合 EN 13432 或现代 ASTM D6400 要求。

HJ/T 209-2005 与其中一份 ZEO Greens 历史报告有关。该报告中的“合格”结论，是依据 HJ/T 209-2005 所列生物分解率指标判定；ASTM D5338-92 是报告引用的测试方法之一。HJ/T 209-2005 后来已被 HJ 209-2017 替代；ISO 14855-1:2005 与 ASTM D5338-92 也属于已有更新版本的旧版标准。

面向中国市场时，这两份历史结果也不能作为符合 GB/T 41010-2021 或现行生物降解性能与标识要求的依据。

现有 ZEO Greens 证据支持到哪一层？

现有证据来自两份针对特定混合薄膜配方的历史测试报告：

受试配方：PE 50%＋ZEO Greens 50%（重量比）。

受试样品是混合薄膜，因此结果不能改写成 ZEO Greens 粉体本身的固有生物降解性能。

• ISO 14855-1:2005：第45天生物降解率为35.9%，第127天达到80.6%。报告测量了受控好氧堆肥条件下的生物降解程度，并确认测试有效性条件符合要求。
• HJ/T 209-2005，并引用 ASTM D5338-92 方法：第45天生物分解率为22.8%，第180天为39.9%。报告所列技术指标为不低于15%，该单项依据 HJ/T 209-2005 判定为“合格”。

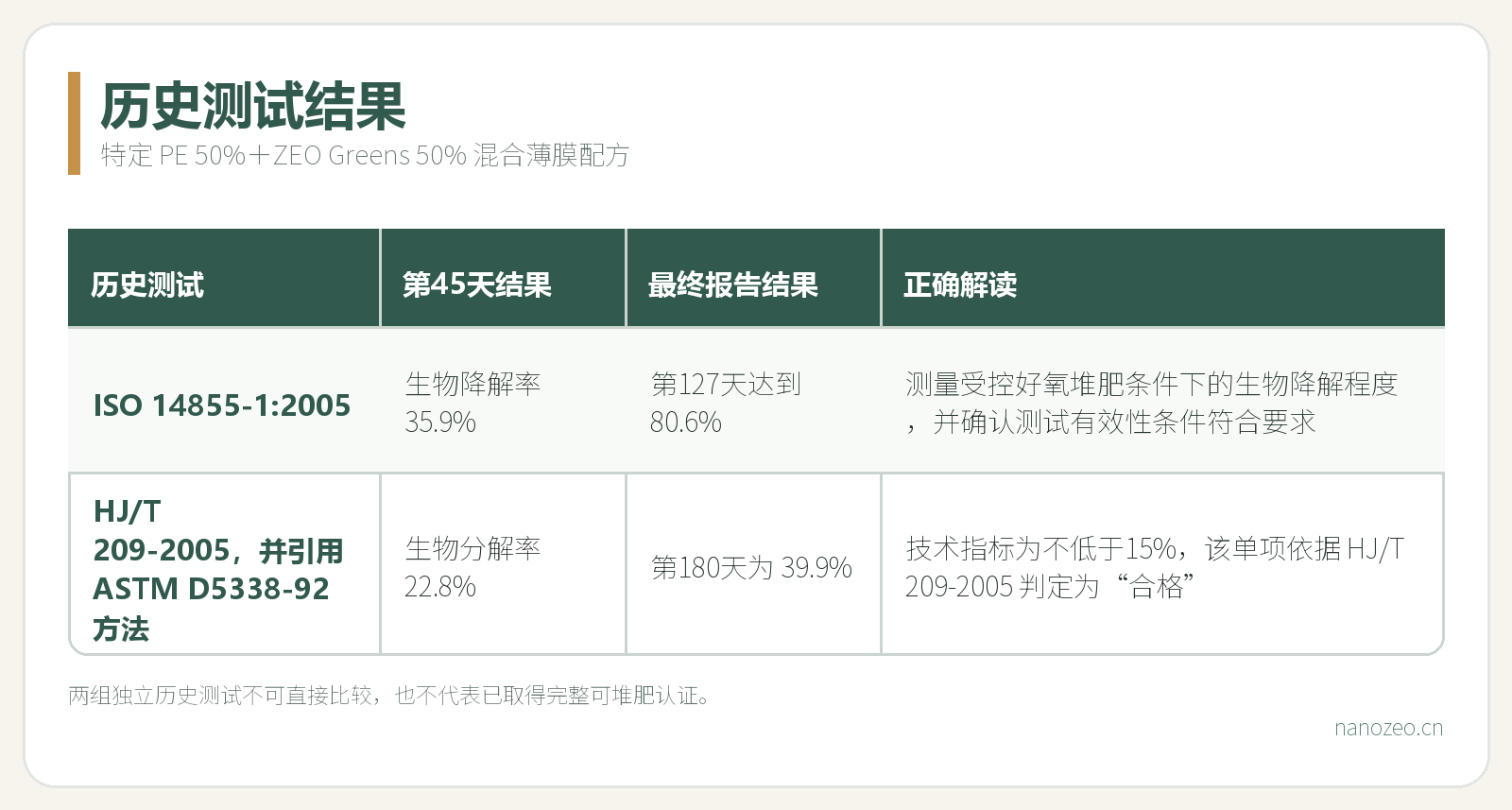

测试结果示意图（简体中文公开版）：图示对应两份特定混合薄膜的独立历史测试结果，不可直接比较，也不代表已取得完整可堆肥认证。

ISO 测试报告记载：试验在 58 ± 2°C 的受控好氧堆肥条件下进行 127 天，并以纤维素为参照材料。报告列出干样品 TOC 为 49.01%，以 100 g 干样品计算的理论 CO₂ 量（ThCO₂）为 179.70 g；生物降解率按扣除空白后的 CO₂ 量相对于理论值计算。报告说明 CO₂ 经 NaOH 吸收后以溶解无机碳（DIC）方式测量，但未完整说明是否另行测定或校正样品中的无机碳／碳酸盐。因此，本文按报告记载呈现 80.6%，不将其解释为 PE 质量的矿化比例。

第二份报告由国家塑料制品质量监督检验中心出具。报告中的“合格”是依据历史 HJ/T 209-2005 指标作出的结论，不能写成“取得 ASTM 产品认证”，也不能作为符合现行可堆肥规范的证明。

两份历史资料都没有证明达到现行 180 天内 90% 的生物降解基准。ISO 14855-1:2005 报告在第 127 天记录为 80.6%，没有提供第 180 天结果；HJ/T 209-2005／ASTM D5338-92 报告在第 180 天记录为 39.9%，其“合格”对应的是报告中另列的不低于 15% 历史指标，而不是 90% 可堆肥基准。

两组百分比来自相互独立的历史测试，所用方法、测试周期、实验系统与报告细节并不完全相同，不能直接比较、求平均或只选择较高数值作为宣传依据。

80.6% 也只能作为报告记载的生物降解数值，不能直接解释为“80.6% 的 PE 质量已经消失”。在用于技术资格判断前，仍须核查原报告的 TOC／ThCO₂ 计算，以及无机碳或碳酸盐贡献的处理方式。

这些结果不能证明什么？

现有证据并不包含以筛分残留、残片尺寸等方式进行的独立正式崩解测试；也没有组成完整可堆肥评估所需的堆肥质量／植物生长生态毒性资料，或以可堆肥要求为目的整合的化学成分与受限元素资料。

因此，现有证据支持的公开表述应限制为：

现有证据不能支持以下扩大说法：

• ZEO Greens 粉体本身在所有条件下都能完全生物降解；
• 任意 PE 配方只要加入 ZEO Greens 都会获得相同结果；
• 受试材料达到 90%／180 天生物降解基准，或已经通过 EN 13432、ASTM D6400；
• 历史报告足以证明符合 GB/T 41010-2021 或现行产品标识要求；
• 材料适用于家庭堆肥；
• 材料会在土壤、海洋、填埋或所有自然环境中快速、完全分解；
• 所有末端情境都不会产生任何微塑料残留。

受控堆肥不等于一般自然环境

受控测试使用明确的接种物、温度、湿度、通气和时间条件。这些条件与路边、农地、海滩、海洋、家庭堆肥箱或填埋场并不相同。

因此，生物降解测试结果不能成为随意丢弃材料的理由，也不能取代正确的回收、收运、堆肥基础设施或其他废弃物管理方式。合适的末端路径，取决于完整材料配方以及当地实际可用的处理系统。

为什么历史测试结果需要谨慎使用？

两份 ZEO Greens 数据都属于基于旧版标准的较早期历史测试结果，只记录特定混合薄膜配方在当时报告条件下的表现。它们不是目前所有产品批次、牌号、加工条件或客户应用的现行或持续认证。

塑料牌号、添加比例、厚度、制造工艺或目标末端环境发生变化，都可能影响结果。现行客户项目应根据实际基材、配方、ZEO Greens 添加比例、样品形态、目标市场及预期末端路径重新评估。

如需新增第三方测试，可以根据客户的实际配方规划；第三方测试费用由客户承担。

常见问题

80.6% 的结果是否代表“完全生物降解”？
不是。报告记载的是特定受试配方在第 127 天达到 80.6% 的生物降解率，并没有写“完全生物降解”，也没有提供第 180 天结果，因此不能证明达到现行 90%／180 天可堆肥基准。

80.6% 是否代表 80.6% 的 PE 质量已经矿化？
不能依据公开摘要作出这一结论。ISO 14855 的计算取决于样品有机碳基础与理论二氧化碳值。原报告的 TOC／ThCO₂ 计算，以及无机碳或碳酸盐贡献的处理方式，仍须在作出聚合物组分层面的解释前核查。

为什么两份报告的最终结果分别为 80.6% 与 39.9%，差异这么大？
两者是采用不同方法、测试周期与实验系统完成的独立历史测试，不能当作重复试验直接比较、求平均或择高引用。较高数值也不自动代表更适用于现行配方。

引用 ASTM D5338-92 是否代表产品取得 ASTM 认证？
不是。ASTM D5338-92 是报告引用的测试方法；该报告的“合格”结论依据 HJ/T 209-2005 所列指标判定。

这些结果能否直接套用到更低的 ZEO Greens 添加比例？
不能自动套用。历史受试薄膜的重量比例为 PE 50%＋ZEO Greens 50%。其他配方需要独立技术评估，并在必要时重新测试。

这些结果是否证明材料可堆肥？
不能。现有证据证明的是特定混合薄膜在受控或指定条件下的生物降解结果，尚未完成完整可堆肥主张所需的全部证据。

项目证据与重新测试

如需评估特定基材、配方、ZEO Greens 添加比例或目标标准，请联系 nanozeo.cn。可提供的完整报告或报告摘要，将在项目审核、用途确认及必要的保密安排后提供，不设为网站公开下载。

如果客户特定配方需要新增第三方测试，可与客户共同评估测试计划；相关测试费用由客户承担。
